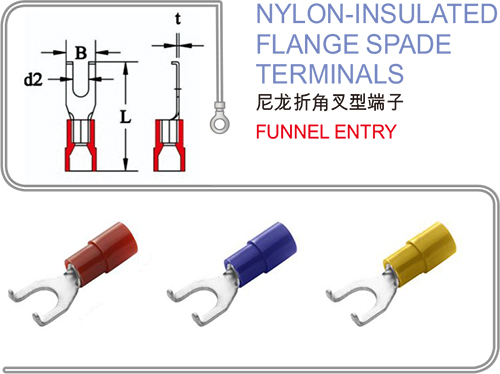

尼龍折角叉型端子NYLON-INSULATED FLANGE SPADE |
尼龍絕緣折角叉型端子 加銅套(管) DOUBLE CRIMP |
尺寸DIMENSIONS(mm) |
STUD SIZE |
WIRE RANGE 電線范圍 A.W.G.mm2 |
|||||
|
規格/編碼 |
ITEM NO .品名 |
PART NO. |
ITEMNO 品名 |
B |
d2 |
L |
t |
||
|
AEFS1.25M3 |
AEFS1.25-3 |
AEFS1.25M3D-TR |
AEFS1.25-3D-TR |
5.70 |
3.20 |
20.50 |
0.75 |
#4 |
22-16 A.W.G. 0.5-1.5 mm2 |
|
AEFS1.25M3.5 |
AEFS1.25-3.5 |
AEFS1.25M3.5D-TR |
AEFS1.25-3.5D-TR |
6.20 |
3.70 |
#6 |
|||
|
AEFS1.25M3.5S |
AEFS1.25-3.5S |
AEFS1.25M3.5SD-TR |
AEFS1.25-3.5SD-TR |
5.70 |
3.70 |
#6 |
|||
|
AEFS1.25M4 |
AEFS1.25-4 |
AEFS1.25M4D-TR |
AEFS1.25-4D-TR |
7.20 |
4.30 |
#8 |
|||
|
AEFS1.25M4S |
AEFS1.25-4S |
AEFS1.25M4SD-TR |
AEFS1.25-4SD-TR |
6.40 |
4.30 |
#8 |
|||
|
AEFS1.25M5 |
AEFS1.25-5 |
AEFS1.25M5D-TR |
AEFS1.25-5D-TR |
8.00 |
5.30 |
#10 |
|||
|
AEFS1.25M6 |
AEFS1.25-6 |
AEFS1.25M6D-TR |
AEFS1.25-6D-TR |
10.70 |
6.40 |
21.50 |
1/4 |
||
|
AEFS1.25M8 |
AEFS1.25-8 |
AEFS1.25M8D-TR |
AEFS1.25-8D-TR |
13.50 |
8.40 |
26.50 |
5/16 |
||
|
AEFS2M3 |
AEFS2-3 |
AEFS2M3D-TR |
AEFS2-3D-TR |
5.70 |
3.20 |
21.40 |
0.80 |
#4 |
16-14 A.W.G. 1.5-2.5 mm2 |
|
AEFS2M3.5 |
AEFS2-3.5 |
AEFS2M3.5D-TR |
AEFS2-3.5D-TR |
6.20 |
3.70 |
#6 |
|||
|
AEFS2M3.5S |
AEFS2-3.5S |
AEFS2M3.5SD-TR |
AEFS2-3.5SD-TR |
5.70 |
3.70 |
#6 |
|||
|
AEFS2M4 |
AEFS2-4 |
AEFS2M4D-TR |
AEFS2-4D-TR |
7.20 |
4.30 |
#8 |
|||
|
AEFS2M4S |
AEFS2-4S |
AEFS2M4SD-TR |
AEFS2-4SD-TR |
6.40 |
4.30 |
#8 |
|||
|
AEFS2M5 |
AEFS2-5 |
AEFS2M5D-TR |
AEFS2-5D-TR |
8.00 |
5.30 |
#10 |
|||
|
AEFS2M6 |
AEFS2-6 |
AEFS2M6D-TR |
AEFS2-6D-TR |
10.70 |
6.40 |
22.40 |
1/4 |
||
|
AEFS2M8 |
AEFS2-8 |
AEFS2M8D-TR |
AEFS2-8D-TR |
13.50 |
8.40 |
27.50 |
5/16 |
||
|
AEFS3.5M3.5 |
AEFS3.5-3.5 |
AEFS3.5M3.5D-TR |
AEFS3.5-3.5D-TR |
7.30 |
3.70 |
24.40 |
0.80 |
#6 |
14-12 A.W.G. 2.5-4 mm2 |
|
AEF3.5M4 |
AEFS3.5-4 |
AEF3.5M4D-TR |
AEFS3.5-4D-TR |
8.00 |
4.30 |
#8 |
|||
|
AEF3.5M5 |
AEFS3.5-5 |
AEF3.5M5D-TR |
AEFS3.5-5D-TR |
8.00 |
5.30 |
#10 |
|||
|
AEF3.5M6 |
AEFS3.5-6 |
AEF3.5M6D-TR |
AEFS3.5-6D-TR |
10.00 |
6.60 |
27.40 |
1/4 |
||
|
AEFS5.5M3 |
AEFS5.5-3 |
AEFS5.5M3D-TR |
AEFS5.5-3D-TR |
7.30 |
3.20 |
25.50 |
1.00 |
#4 |
12-10 A.W.G. 4-6 mm2 |
|
AEFS5.5M3.5 |
AEFS5.5-3.5 |
AEFS5.5M3.5D-TR |
AEFS5.5-3.5D-TR |
8.10 |
3.70 |
#6 |
|||
|
AEFS5.5M4 |
AEFS5.5-4 |
AEFS5.5M4D-TR |
AEFS5.5-4D-TR |
8.20 |
4.30 |
#8 |
|||
|
AEFS5.5M4S |
AEFS5.5-4S |
AEFS5.5M4SD-TR |
AEFS5.5-4SD-TR |
6.30 |
4.30 |
#8 |
|||
|
AEFS5.5M5 |
AEFS5.5-5 |
AEFS5.5M5D-TR |
AEFS5.5-5D-TR |
9.00 |
5.30 |
#10 |
|||
|
AEFS5.5M6 |
AEFS5.5-6 |
AEFS5.5M6D-TR |
AEFS5.5-6D-TR |
12.00 |
6.40 |
29.50 |
1/4 |
||
|
AEFS5.5M8 |
AEFS5.5-8 |
AEFS5.5M8D-TR |
AEFS5.5-8D-TR |
13.50 |
8.40 |
31.40 |
5/16 |
||
