PART NO.

規格/編碼

ITEM NO.

品名型號

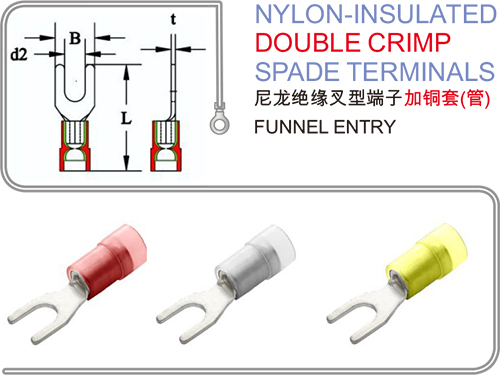

尺寸DIMENSIONS(mm)

STUD SIZE

WIRE RANGE

電線范圍

A .W.G.mm2

B

d 2

L

t

AES1.25M3D-TR

AES1.25-3D-TR

5.70

3.20

22.00

0.75

#4

22-16 A.W.G.

0.5-1.5 mm2

AES1.25M3.5D-TR

AES1.25-3.5D-TR

6.20

3.70

#6

AES1.25M3.5D-TR

AES1.25-3.5SD-TR

5.70

3.70

#6

AES1.25M4D-TR

AES1.25-4D-TR

7.20

4.30

#8

AES1.25M4SD-TR

AES1.25-4SD-TR

6.40

4.30

#8

AES1.25M5D-TR

AES1.25-5D-TR

8.00

5.30

#10

AES1.25M6D-TR

AES1.25-6D-TR

10.70

6.40

23.00

1/4

AES1.25M6SD-TR

AES1.25-6SD-TR

9.30

6.40

1/4

AES1.25M8D-TR

AES1.25-8D-TR

13.50

8.40

28.00

5/16

AES1.25M10D-TR

AES1.25-10D-TR

15.00

10.50

28.50

3/8

AES2M3D-TR

AES2-3D-TR

5.70

3.20

22.00

0.80

#4

16-14 A.W.G.

1.5-2.5 mm2

AES2M3.5D-TR

AES2-3.5D-TR

6.20

3.70

#6

AES2M3.5SD-TR

AES2-3.5SD-TR

5.70

3.70

#6

AES2M4D-TR

AES2-4D-TR

7.20

4.30

#8

AES2M4SD-TR

AES2-4SD-TR

6.40

4.30

#8

AES2M5D-TR

AES2-5D-TR

8.00

5.30

#10

AES2M6D-TR

AES2-6D-TR

10.70

6.40

23.00

1/4

AES2M6SD-TR

AES2-6SD-TR

9.30

6.40

1/4

AES2M8D-TR

AES2-8D-TR

13.50

8.40

28.50

5/16

AES5.5M3D-TR

AES5.5-3D-TR

7.30

3.20

26.70

1.00

#4

12-10 A.W.G.

4-6 mm2

AES5.5M3.5D-TR

AES5.5-3.5D-TR

8.10

3.70

#6

AES5.5M3.5SD-TR

AES5.5-3.5SD-TR

6.30

3.70

#6

AES5.5M4D-TR

AES5.5-4D-TR

8.20

4.30

#8

AES5.5M4SD-TR

AES5.5-4SD-TR

6.30

4.20

#8

AES5.5M5D-TR

AES5.5-5D-TR

9.00

5.30

#10

AES5.5M6D-TR

AES5.5-6D-TR

12.00

6.40

30.70

1/4

AES5.5M6SD-TR

AES5.5-6SD-TR

9.00

6.40

1/4

AES5.5M8D-TR

AES5.5-8D-TR

13.50

8.40

32.60

5/16
