PART NO.

規格/編碼

ITEM NO.

品名型號

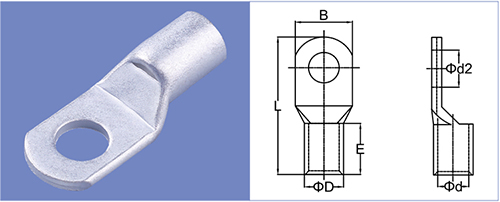

尺寸DIMENSIONS(mm)

Φd2

B

L

ΦD

Φd

E

SC1.5M4

SC1.5-4

4.2

8

16

3.7

1.8

5

SC1.5M5

SC1.5-5

5.2

10

17

SC1.5M6

SC1.5-6

6.5

10

18

SC2.5M4

SC2.5-4

4.2

8

18

4

2.4

7

SC2.5M5

SC2.5-5

5.2

10

20

SC2.5M6

SC2.5-6

6.5

10

20

SC2.5M8

SC2.5-8

8.4

12.5

23

SC4M4

SC4-4

4.2

10

20

4.8

3.1

7

SC4M5

SC4-5

5.2

10

20

SC4M6

SC4-6

6.5

10

20

SC4M8

SC4-8

8.4

12.5

23

SC6M4

SC6-4

4.2

10

24

5.5

3.8

9

SC6M5

SC6-5

5.2

10

24

SC6M6

SC6-6

6.5

12

24

SC6M8

SC6-8

8.4

12.5

26

SC6M10

SC6-10

10.5

15

28

6.2

4

SC10M5

SC10-5

5.2

12

25

6.2

4.5

9

SC10M6

SC10-6

6.5

12

25

SC10M8

SC10-8

8.4

12.5

27

SC10M10

SC10-10

10.5

15

29

SC10M12

SC10-12

13

17

31

SC16M5

SC16-5

5.2

12

30

7.1

5.4

12

SC16M6

SC16-6

6.5

12

30

SC16M8

SC16-8

8.4

12.5

30

SC16M10

SC16-10

10.5

16

33

SC16M12

SC16-12

13

17

35

SC25M5

SC25-5

5.2

13

33

8.8

6.8

12

SC25M6

SC25-6

6.5

13

33

SC25M8

SC25-8

8.4

15

33

SC25M10

SC25-10

10.5

18

34

SC25M12

SC25-12

13

18

35

SC25M14

SC25-14

15

20

38

SC35M5

SC35-5

5.2

16

38

10.6

8.2

14

SC35M6

SC35-6

6.5

16

38

SC35M8

SC35-8

8.4

16

38

SC35M10

SC35-10

10.5

18

39

SC35M12

SC35-12

13

19

40.5

SC35M14

SC35-14

15

20

42

SC50M6

SC50-6

6.5

17.8

45

12.4

9.5

16

SC50M8

SC50-8

8.4

17.8

45

SC50M10

SC50-10

10.5

17.8

45

SC50M12

SC50-12

13

20

45

SC50M14

SC50-14

15

22

46

SC50M16

SC50-16

17

24

47

SC70M8

SC70-8

8.4

21

52

14.7

11.2

20

SC70M10

SC70-10

10.5

21

52

SC70M12

SC70-12

13

21

52

SC70M14

SC70-14

15

21

52

PART NO.

規格/編碼

ITEM NO.

品名型號

尺寸DIMENSIONS(mm)

Φd2

B

L

ΦD

Φd

E

SC70M16

SC70-16

17

25

53

14.7

11.2

20

SC95M8

SC95-8

8.4

25

58

17.4

13.5

23

SC95M10

SC95-10

10.5

25

58

SC95M12

SC95-12

13

25

58

SC95M14

SC95-14

15

25

58

SC95M16

SC95-16

17

25

58

SC120M8

SC120-8

8.4

28

63

19.4

15

22

SC120M10

SC120-10

10.5

28

63

SC120M12

SC120-12

13

28

63

SC120M14

SC120-14

15

28

63

SC120M16

SC120-16

17

28

63

SC120M20

SC120-20

21

28

63

SC150M8

SC150-8

8.4

30.5

70

21.2

16.5

26

SC150M10

SC150-10

10.5

30.5

70

SC150M12

SC150-12

13

30.5

70

SC150M14

SC150-14

15

30.5

70

SC150M16

SC150-16

17

30.5

70

SC150M20

SC150-20

21

30.5

70

SC185M10

SC185-10

10.5

34

75

23.5

18.5

32

SC185M12

SC185-12

13

34

75

SC185M14

SC185-14

15

34

75

SC185M16

SC185-16

17

34

75

SC185M20

SC185-20

21

34

75

SC240M10

SC240-10

10.5

38.5

90

26.5

21

38

SC240M12

SC240-12

13

38.5

90

SC240M14

SC240-14

15

38.5

90

SC240M16

SC240-16

17

38.5

90

SC240M18

SC240-18

19

38.5

90

SC240M20

SC240-20

21

38.5

90

SC300M10

SC300-10

10.5

43

98

30

23.5

42

SC300M12

SC300-12

13

43

98

SC300M14

SC300-14

15

43

98

SC300M16

SC300-16

17

43

98

SC300M20

SC300-20

21

43

98

SC400M10

SC400-10

10.5

52.5

110

36.5

28.5

44

SC400M12

SC400-12

13

52.5

110

SC400M14

SC400-14

15

52.5

110

SC400M16

SC400-16

17

52.5

110

SC400M20

SC400-20

21

52.5

110

SC500M10

SC500-10

10.5

56

120

39

30

48

SC500M12

SC500-12

13

56

120

SC500M14

SC500-14

15

56

120

SC500M16

SC500-16

17

56

120

SC500M20

SC500-20

21

56

120

SC630M10

SC630-10

10.5

65

140

45

35

56

SC630M12

SC630-12

13

65

140

SC630M14

SC630-14

15

65

140

SC630M16

SC630-16

17

65

140

SC630M20

SC630-20

21

65

140
