PART NO.

規格/編碼

ITEM NO.

品名型號

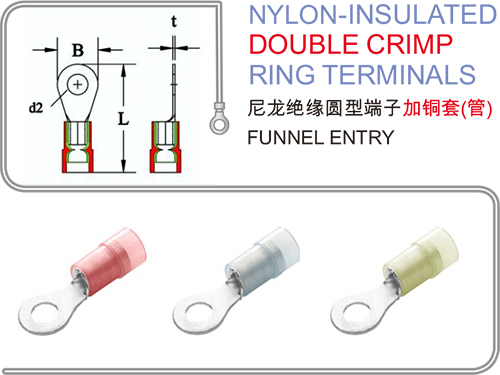

尺寸DIMENSIONS(mm)

STUD SIZE

WIRE RANGE

電線范圍

A .W.G.mm2

B

d 2

L

t

AER1.25M3D-TR

AER1.25-3D-TR

5.50

3.20

17.5

0.75

#4

22-16A.W.G.

0.5-1.5mm2

AER1.25M3.5D-TR

AER1.25-3.5D-TR

5.50

3.70

#6

AER1.25M3.5LD-TR

AER1.25-3.5LD-TR

6.60

3.70

20.4

#6

AER1.25M4D-TR

AER1.25-4D-TR

8.00

4.30

21.7

#8

AER1.25M4MD-TR

AER1.25-4MD-TR

6.60

4.30

20.4

#8

AER1.25M5D-TR

AER1.25-5D-TR

8.00

5.30

21.7

#10

AER1.25M6D-TR

AER1.25-6D-TR

11.60

6.40

27.6

1/4

AER1.25M8D-TR

AER1.25-8D-TR

11.60

8.40

5/16

AER1.25M10D-TR

AER1.25-10D-TR

13.70

10.50

31.5

3/8

AER1.25M12D-TR

AER1.25-12D-TR

19.00

13.00

35.0

1/2

AER2M3MD-TR

AER2-3MD-TR

6.60

3.20

20.6

0.80

#4

16-14A.W.G.

1.5-2.5mm2

AER2M3D-TR

AER2-3D-TR

8.50

3.20

23.0

#4

AER2M3.5D-TR

AER2-3.5D-TR

6.60

3.70

20.6

#6

AER2M3.5LD-TR

AER2-3.5LD-TR

8.50

3.70

23.0

#6

AER2M4D-TR

AER2-4D-TR

8.50

4.30

#8

AER2M4MD-TR

AER2-4MD-TR

6.60

4.30

20.8

#8

AER2M5MD-TR

AER2-5MD-TR

8.50

5.30

23.0

0.8

#10

AER2M5D-TR

AER2-5D-TR

9.50

5.30

#10

AER2M6D-TR

AER2-6D-TR

12.00

6.40

28.1

1/4

AER2M8D-TR

AER2-8D-TR

12.00

8.40

5/16

AER2M10D-TR

AER2-10D-TR

13.70

10.50

31.9

3/8

AER2M12D-TR

AER2-12D-TR

19.00

13.00

35.5

1/2

AER5.5M3D-TR

AER5.5-3D-TR

9.50

3.20

26.7

1.00

#4

12-10A.W.G.

4-6mm2

AER5.5M3.5D-TR

AER5.5-3.5D-TR

9.50

3.70

#6

AER5.5M4SD-TR

AER5.5-4SD-TR

7.40

4.30

26.0

#8

AER5.5M4D-TR

AER5.5-4D-TR

9.50

4.30

26.7

#8

AER5.5M5D-TR

AER5.5-5D-TR

9.50

5.30

#10

AER5.5M5SD-TR

AER5.5-5SD-TR

7.40

5.30

26.0

#10

AER5.5M6D-TR

AER5.5-6D-TR

12.00

6.40

32.7

1/4

AER5.5M8D-TR

AER5.5-8D-TR

15.00

8.40

34.9

5/16

AER5.5M10D-TR

AER5.5-10D-TR

15.00

10.50

3/8

AER5.5M12D-TR

AER5.5-12D-TR

19.20

13.00

39.6

1/2
