PART NO.

規(guī)格/編碼

ITEM NO.

品名型號(hào)

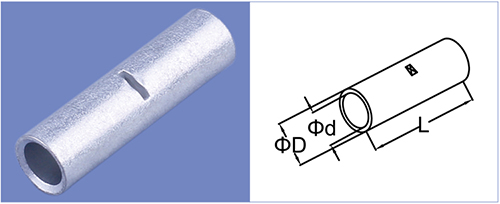

尺寸DIMENSIONS(mm)

L

ΦD

Φd

L1.5

L1.5

20

3.7

1.8

L2.5

L2.5

20

4.0

2.4

L4

L4

20

4.8

3.1

L6

L6

20

5.5

3.8

L10

L10

20

6.2

4.5

L16

L16

40

7.1

5.4

L25

L25

45

8.8

6.8

L35

L35

45

10.6

8.2

L50

L50

45

12.4

9.5

L70

L70

50

14.7

11.2

L95

L95

50

17.4

13.5

L120

L120

55

19.4

15.0

L150

L150

60

21.2

16.5

L185

L185

65

23.5

18.5

L240

L240

80

26.5

21.0

L300

L300

85

30.0

23.5

L400

L400

90

36.5

28.5

L500

L500

100

39.0

30.0

L550

L550

100

41.4

31.7

L630

L630

110

45.0

35.0

L800

L800

150

50.6

39.0

L1000

L1000

170

56.2

43.0

C-L1.5

C-L1.5

20

3.3

1.8

C-L2.5

C-L2.5

20

3.6

2.4

C-L4

C-L4

20

4.4

3.1

C-L6

C-L6

20

5.1

3.8

C-L10

C-L10

20

5.8

4.5

C-L16

C-L16

40

6.6

5.4

C-L25

C-L25

45

8.3

6.8

C-L35

C-L35

45

10.0

8.2

C-L50

C-L50

45

11.6

9.5

C-L70

C-L70

50

13.8

11.2

C-L95

C-L95

50

16.4

13.5

C-L120

C-L120

55

18.2

15.0

C-L150

C-L150

60

19.9

16.5

C-L185

C-L185

65

22.1

18.5

C-L240

C-L240

80

25.0

21.0

C-L300

C-L300

85

28.2

23.5

C-L400

C-L400

90

34.3

28.5

C-L500

C-L500

100

36.5

30.0

C-L630

C-L630

110

42.2

35.0
