PART NO. 規格/編碼 |
ITEM NO. 品名型號 |

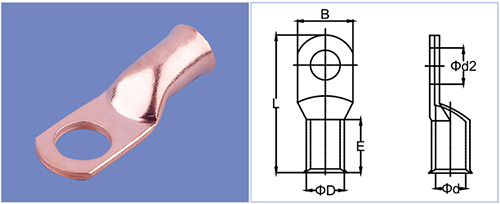

尺寸DIMENSIONS(mm) |
|||||
|
Φd2 |
B |
L |
ΦD |
Φd |
E |
||
|
8#10 |
8#10 |
5.1 |
11.8 |
33.3 |
7.1 |
4.8 |
13 |
|
8*1/4 |
8*1/4 |
6.8 |
11.8 |
33.3 |
|||
|
8*5/16 |
8*5/16 |
8.3 |
11.8 |
33.3 |
|||
|
8*3/8 |
8*3/8 |
10.4 |
14.5 |
33.3 |
|||
|
8*1/2 |
8*1/2 |
13.1 |
17 |
33.3 |
|||
|
6#10 |
6#10 |
5.1 |
11.8 |
37.3 |
8.1 |
5.9 |
15 |
|
6*1/4 |
6*1/4 |
6.8 |
13.7 |
37.3 |
|||
|
6*5/16 |
6*5/16 |
8.3 |
13.7 |
37.3 |
|||
|
6*3/8 |
6*3/8 |
10.4 |
13.7 |
37.3 |
|||
|
6*1/2 |
6*1/2 |
13.1 |
17 |
37.3 |
14 |
||
|
4*1/4 |
4*1/4 |
6.8 |
13.8 |
38.9 |
9.5 |
7.3 |
15.5 |
|
4*5/16 |
4*5/16 |
8.3 |
13.8 |
38.9 |
|||
|
4*3/8 |
4*3/8 |
10.4 |
14.5 |
38.9 |
|||
|
4*1/2 |
4*1/2 |
13.1 |
17 |
38.9 |
15 |
||
|
2*1/2 |
2*1/2 |
6.8 |
16.5 |
41.1 |
11.1 |
8.5 |
16 |
|
2*5/16 |
2*5/16 |
8.3 |
16.5 |
41.1 |
|||
|
2*3/8 |
2*3/8 |
10.4 |
16.5 |
41.1 |
|||
|
2*1/2 |
2*1/2 |
13.1 |
17 |
41.1 |
15.3 |
||
|
1*1/4 |
1*1/4 |
6.8 |
16.4 |
43.6 |
11.7 |
9.1 |
16 |
|
1*5/16 |
1*5/16 |
8.3 |
16.4 |
43.6 |
|||
|
1*3/8 |
1*3/8 |
10.4 |
17.1 |
43.6 |
|||
|
1*1/2 |
1*1/2 |
13.1 |
19.1 |
43.6 |
|||
|
1/0*1/4 |
1/0*1/4 |
6.8 |
18.4 |
46.8 |
13 |
10.4 |
19 |
|
1/0*5/16 |
1/0*5/16 |
8.3 |
18.4 |
46.8 |
|||
|
1/0*3/8 |
1/0*3/8 |
10.4 |
18.4 |
46.8 |
|||
|
1/0*1/2 |
1/0*1/2 |
13.1 |
21 |
46.8 |
|||
|
2/0*1/4 |
2/0*1/4 |
6.8 |
21 |
52.4 |
14.2 |
11.7 |
22 |
|
2/0*5/16 |
2/0*5/16 |
8.3 |
21 |
52.4 |
|||
|
2/0*3/8 |
2/0*3/8 |
10.4 |
21 |
52.4 |
|||
|
2/0*1/2 |
2/0*1/2 |
13.1 |
21 |
52.4 |
21 |
||
|
3/0*5/16 |
3/0*5/16 |
8.3 |
23.1 |
55.9 |
15.7 |
13 |
22.5 |
|
3/0*3/8 |
3/0*3/8 |
10.4 |
23.1 |
55.9 |
|||
|
3/0*1/2 |
3/0*1/2 |
13.1 |
23.1 |
55.9 |
|||
|
4/0*5/16 |
4/0*5/16 |
8.3 |
25.8 |
60.5 |
17.2 |
14.2 |
24 |
|
4/0*3/8 |
4/0*3/8 |
10.4 |
25.8 |
60.5 |
|||
|
4/0*1/2 |
4/0*1/2 |
13.1 |
25.8 |
60.5 |
|||
