PART NO.

規格/編碼

ITEM NO.

品名型號

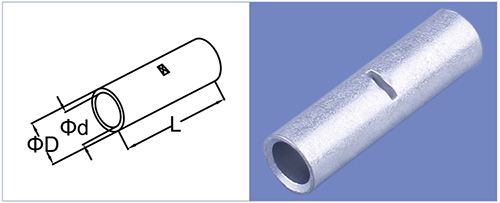

尺寸DIMENSIONS(mm)

L

ΦD

Φd

M1.5

M1.5

22

4

2.4

M2.5

M2.5

22

4.3

2.7

M4

M4

25

4.8

3.1

M6

M6

25

5.5

3.8

M10

M10

25

6.9

4.7

M16

M16

29

7.8

5.6

M25

M25

29

9.5

7.1

M35

M35

35

11

8.2

M40

M40

35

11.2

9

M50

M50

35

12.5

9.5

M70

M70

45

15

11.5

M95

M95

47

17

13.5

M120

M120

52

20

15.6

M150

M150

59

21

16.5

M185

M185

65

23.6

18.4

M240

M240

75

26.4

21.2

M300

M300

90

28.6

23.4

M400

M400

106

32.8

26.8

PART NO.

規格/編碼

ITEM NO.

品名型號

尺寸DIMENSIONS(mm)

L

ΦD

Φd

S-M1.5

S-M1.5

15

3.3

1.8

S-M2.5

S-M2.5

15

4.3

2.7

S-M4

S-M4

22

5

3.3

S-M6

S-M6

22

5.5

3.8

S-M10

S-M10

25

6.8

4.7

S-M16

S-M16

27

7.8

5.6

S-M25

S-M25

29

9.4

7.1

S-M35

S-M35

33

11.3

8.7

S-M50

S-M50

35

12.6

9.8

S-M70

S-M70

39

14.7

11.5

S-M95

S-M95

43

16.9

13.5

S-M120

S-M120

47

19.9

15.6

S-M150

S-M150

58

20.9

16.5

S-M185

S-M185

64

23.7

18.8

S-M240

S-M240

75

26.2

21.2

S-M300

S-M300

90

28.6

23.4

S-M400

S-M400

90

32.8

26.8
