PART NO. 規格/編碼 |
ITEM NO. 品名型號 |

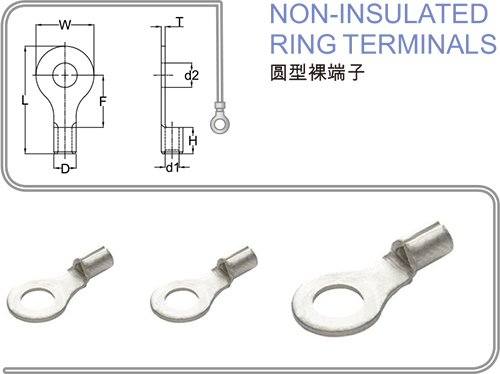

尺寸DIMENSIONS(mm) |
WIRE RANGE 電線范圍 A .W.G.mm2 |
|||||||
|
d 2 |
W |
F |
L |
H |
d 1 |
D |
T |
|||
|
R0.5M2.2 |
R0.5-2.2 |
2.2 |
5.0 |
6.0 |
12.5 |
4.0 |
1.2 |
2.2 |
0.5 |
26-22 A.W.G. 0.2-0.5mm2 |
|
R0.5M2.7 |
R0.5-2.7 |
2.7 |
||||||||
|
R0.5M3.2 |
R0.5-3.2 |
3.2 |
||||||||
|
R0.5M4 |
R0.5-4 |
4.3 |
6.5 |
8.5 |
15.25 |
|||||
|
R0.5M5 |
R0.5-5 |
5.3 |
8.0 |
8.0 |
16.0 |
|||||
|
R1.25M3 |
R1.25-3 |
3.2 |
5.7 |
4.95 |
12.6 |
4.8 |
1.7 |
3.4 |
0.7 |
22-16 A.W.G. 0.5-1.5 mm2 |
|
R1.25M3.5S |
R1.25-3.5S |
3.7 |
||||||||
|
R1.25M3.5M |
R1.25-3.5M |
3.7 |
6.6 |
6.3 |
14.4 |
|||||
|
R1.25M3.5L |
R1.25-3.5L |
3.7 |
8.0 |
7.0 |
15.8 |
|||||
|
R1.25M3.7S |
R1.25-3.7S |
3.7 |
5.7 |
4.95 |
12.6 |
|||||
|
R1.25M3.7M |
R1.25-3.7M |
3.7 |
6.6 |
6.3 |
14.4 |
|||||
|
R1.25M3.7L |
R1.25-3.7L |
3.7 |
8.0 |
7.0 |
15.8 |
|||||
|
R1.25M4S |
R1.25-4S |
4.3 |
6.6 |
6.3 |
14.4 |
|||||
|
R1.25M4L |
R1.25-4L |
4.3 |
8.0 |
7.0 |
15.8 |
|||||
|
R1.25M5 |
R1.25-5 |
5.3 |
||||||||
|
R1.25M5L |
R1.25-5L |
5.3 |
9.8 |
8.3 |
17.8 |
|||||
|
R1.25M6S |
R1.25-6S |
6.4 |
||||||||
|
R1.25M6 |
R1.25-6 |
6.4 |
11.6 |
11.2 |
21.8 |
|||||
|
R1.25M8 |
R1.25-8 |
8.4 |
||||||||
|
R1.25M8L |
R1.25-8L |
8.4 |
13.6 |
13.9 |
25.5 |
|||||
|
R1.25M10 |
R1.25-10 |
10.5 |
||||||||
|
R1.25M12 |
R1.25-12 |
13.0 |
19.2 |
16.0 |
30.4 |
|||||
|
R1.25M14 |
R1.25-14 |
15.0 |
||||||||
|
R1.25M16 |
R1.25-16 |
17.0 |
27.0 |
21.0 |
39.3 |
|||||
|
R1.25M20 |
R1.25-20 |
21.0 |
||||||||
|
R2M3S |
R2-3S |
3.2 |
5.5 |
4.8 |
12.4 |
4.8 |
2.3 |
4.0 |
0.8 |
16-14 A.W.G. 1.5-2.5mm2 |
|
R2M3 |
R2-3 |
3.2 |
6.6 |
4.5 |
12.3 |
|||||
|
R2M3.5 |
R2-3.5 |
3.7 |
||||||||
|
R2M3.5M |
R2-3.5M |
3.7 |
6.6 |
7.9 |
16.0 |
|||||
|
R2M3.5L |
R2-3.5L |
3.7 |
8.5 |
7.75 |
16.8 |
|||||
|
R2M4S |
R2-4S |
4.3 |
6.6 |
7.9 |
16.0 |
|||||
|
R2M4L |
R2-4L |
4.3 |
8.5 |
7.75 |
16.8 |
|||||
|
R2M5S |
R2-5S |
5.3 |
||||||||
|
R2M5L |
R2-5L |
5.3 |
9.5 |
7.5 |
17.1 |
|||||
|
R2M6S |
R2-6S |
6.4 |
||||||||
|
R2M6 |
R2-6 |
6.4 |
12.0 |
11.0 |
21.8 |
|||||
|
R2M8 |
R2-8 |
8.4 |
||||||||
|
R2M8L |
R2-8L |
8.4 |
13.6 |
13.9 |
25.5 |
|||||
|
R2M10 |
R2-10 |
10.5 |
||||||||
|
R2M12 |
R2-12 |
13.0 |
19.2 |
16.0 |
30.4 |
|||||
|
R2M14 |
R2-14 |
15.0 |
27.0 |
21.0 |
39.3 |
|||||
|
R2M16 |
R2-16 |
17.0 |
||||||||
|
R2M18 |
R2-18 |
19.0 |
||||||||
|
R2M20 |
R2-20 |
21.0 |
||||||||
|
R3.5M4 |
R3.5-4 |
4.3 |
8.0 |
7.70 |
17.7 |
6.0 |
2.9 |
5.0 |
1.0 |
14-12 A.W.G. 2.5-4mm2 |
|
R3.5M4M |
R3.5-4M |
4.3 |
9.5 |
8.20 |
20.9 |
|||||
|
R3.5M5S |
R3.5-5S |
5.3 |
8.0 |
7.70 |
17.7 |
|||||
|
R3.5M5M |
R3.5-5M |
5.3 |
9.5 |
8.20 |
20.9 |
|||||
|
R3.5M6 |
R3.5-6 |
6.4 |
12.0 |
9.40 |
21.4 |
|||||
|
R3.5M8 |
R3.5-8 |
8.4 |
15.0 |
13.50 |
27.0 |
|||||
|
R3.5M10 |
R3.5-10 |
10.5 |
15.0 |
13.50 |
27.0 |
|||||
|
R5.5M3.5 |
R5.5-3.5 |
3.7 |
7.2 |
5.90 |
15.5 |
6.8 |
3.4 |
5.5 |
1.0 |
12-10 A.W.G. 4-6mm2 |
|
R5.5M4S |
R5.5-4S |
4.3 |
||||||||
|
R5.5M4L |
R5.5-4L |
4.3 |
9.5 |
8.85 |
19.6 |
|||||
|
R5.5M5 |
R5.5-5 |
5.3 |
||||||||
|
R5.5M6 |
R5.5-6 |
6.4 |
12.0 |
10.70 |
23.5 |
|||||
|
R5.5M6L |
R5.5-6L |
6.4 |
12.0 |
13.00 |
25.8 |
|||||
|
R5.5M8 |
R5.5-8 |
8.4 |
15.0 |
13.70 |
28.0 |
|||||
|
R5.5M10 |
R5.5-10 |
10.5 |
||||||||
|
R5.5M12 |
R5.5-12 |
13.0 |
19.2 |
16.00 |
31.6 |
|||||
