PART NO.

規格/編碼

ITEM NO.

品名型號

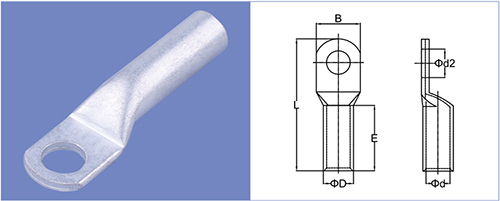

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

FC70M20

FC70-20

21

30

72

15

11

21

FC95M8

FC95-8

8.5

25

56

17

13.1

25

FC95M10

FC95-10

10.5

25

60

FC95M12

FC95-12

13

25

62

FC95M14

FC95-14

15

25

66.5

FC95M16

FC95-16

17

25

70

FC95M20

FC95-20

21

30

76

FC120M8

FC120-8

8.5

28

64

19

14.5

26

FC120M10

FC120-10

10.5

28

64

FC120M12

FC120-12

13

28

66

FC120M14

FC120-14

15

28

69.5

FC120M16

FC120-16

17

28

72

FC150M10

FC150-10

10.5

30

71

21

16.2

30

FC150M12

FC150-12

13

30

73

FC150M14

FC150-14

15

30

73

FC150M16

FC150-16

17

30

75

FC185M12

FC185-12

13

33.5

81

23

18

32

FC185M14

FC185-14

15

33.5

85

FC185M16

FC185-16

17

33.5

87

FC185M20

FC185-20

21

33.5

91

FC240M10

FC240-10

10.5

38

93.5

26

20.6

35

FC240M12

FC240-12

13

38

93.5

FC240M14

FC240-14

15

38

93.5

FC240M16

FC240-16

17

38

93.5

FC240M20

FC240-20

21

38

93.5

FC300M12

FC300-12

13

41

96

28

23

44

FC300M14

FC300-14

15

41

102

FC300M16

FC300-16

17

41

102

FC300M20

FC300-20

21

41

106

FC400M12

FC400-12

13

46.5

115

32

26

44

FC400M14

FC400-14

15

46.5

115

FC400M16

FC400-16

17

46.5

115

FC400M20

FC400-20

21

46.5

118

PART NO.

規格/編碼

ITEM NO.

品名型號

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

S-TL10M6

S-TL10-6

6.4

11.9

35

6.8

4.7

18

S-TL10M8

S-TL10-8

8.3

15

38

S-TL16M6

S-TL16-6

6.4

11.9

39

7.8

5.6

21.5

S-TL16M8

S-TL16-8

8.3

15

41.5

S-TL25M8

S-TL25-8

8.3

15

50

9.4

7.1

29

S-TL25M10

S-TL25-10

10.5

18

55

S-TL35M8

S-TL35-8

8.3

16.5

53

11.3

8.7

31

S-TL35M10

S-TL35-10

10.5

19

57

S-TL50M10

S-TL50-10

10.5

20

63

12.6

9.8

35

S-TL50M12

S-TL50-12

13

21

67

S-TL70M10

S-TL70-10

10.5

21.5

69

14.7

11.5

39

S-TL70M12

S-TL70-12

13.2

21.5

71

S-TL95M12

S-TL95-12

13

24.7

79

16.9

13.5

46

S-TL95M14

S-TL95-14

14.5

24.7

83

S-TL95M16

S-TL95-16

16.5

27

86

S-TL120M12

S-TL120-12

13

28.9

87

19.9

15.6

51

S-TL120M14

S-TL120-14

14.5

28.9

91

S-TL120M16

S-TL120-16

16.5

28.9

95

52

S-TL150M12

S-TL150-12

13

30.4

99

20.9

16.5

56

S-TL150M14

S-TL150-14

14.5

30.4

103

S-TL150M16

S-TL150-16

16.5

30.4

103

S-TL185M12

S-TL185-12

13

34

108

23.7

18.8

62

S-TL185M14

S-TL185-14

14.5

34

112

S-TL185M16

S-TL185-16

16.5

34

113

S-TL240M12

S-TL240-12

13

38.4

114

26.2

21.2

66

S-TL240M14

S-TL240-14

14.5

38.4

118

S-TL240M16

S-TL240-16

16.5

38.4

119

S-TL300M14

S-TL300-14

14.5

41.7

132

28.6

23.4

75

S-TL300M16

S-TL300-16

16.5

41.7

132

S-TL400M16

S-TL400-16

16.5

47.8

140

32.8

26.8

79

S-TL500M16

S-TL500-16

16.5

54.8

143

38.4

29.8

78
