PART NO.

規格/編碼

I品TE名M型N號O.

MATERIAL 材 質

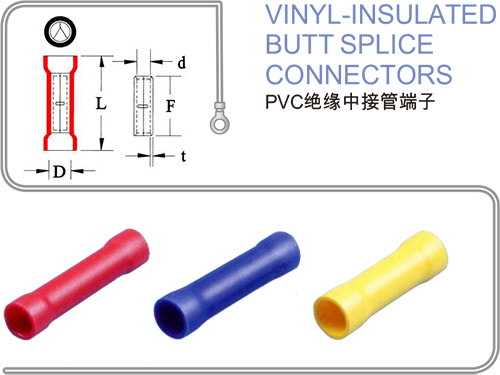

尺寸DIMENSIONS(mm)

WIRE RANGE

電線范圍

A .W.G.mm2

BUTTED SEAM

不焊接

D

d

L

F

t

VB1.25S

VB1.25S

COPPER PLATE銅板

4.00

1.85

24

15

0.50

22-16A.W.G.

0.5-1.5mm2

VB1.25M

VB1.25M

COPPER PLATE銅板

4.30

2.05

0.65

VB1.25

VB1.25

COPPER PLATE銅板

1.90

0.75

VB1.25T

VB1.25T

COPPER TUBULAR銅管

1.85

VB2S

VB2S

COPPER PLATE銅板

2.40

0.50

16-14A.W.G.

1.5-2.5mm2

VB2M

VB2M

COPPER PLATE銅板

4.50

2.75

0.65

VB2

VB2

COPPER PLATE銅板

2.50

0.80

VB2T

VB2T

COPPER TUBULAR銅管

2.50

VB5.5S

VB5.5S

COPPER PLATE銅板

6.30

4.00

25.5

0.50

12-10A.W.G.

4-6mm2

VB5.5M

VB5.5M

COPPER PLATE銅板

6.50

4.05

27

0.75

VB5.5

VB5.5

COPPER PLATE銅板

3.60

1.00

VB5.5T

VB5.5T

COPPER TUBULAR銅管

3.60

1.00

VB8T

VB8T

COPPER TUBULAR銅管

7.00

4.50

33.0

21.0

1.25

8A.W.G.

8mm2

VB8ST

VB8ST

COPPER TUBULAR銅管

6.80

4.50

41.0

30.0

0.85

VB14T

VB14T

COPPER TUBULAR銅管

10.40

6.40

48.0

27.5

1.30

6A.W.G.

14mm2

VB14ST

VB14ST

COPPER TUBULAR銅管

10.00

5.80

40.0

30.0

1.00

VB22T

VB22T

COPPER TUBULAR銅管

13.00

8.20

41.0

30.5

1.55

4A.W.G.

22mm2

VB22ST

VB22ST

COPPER TUBULAR銅管

12

7.50

50.0

30.0

1.00

VB38T

VB38T

COPPER TUBULAR銅管

14.10

10.10

45.5

33.5

1.60

2A.W.G.

38mm2

VB38ST

VB38ST

COPPER TUBULAR銅管

14.10

9.60

45.5

33.5

1.50
