PART NO.

規格/編碼

ITEM NO.

品名型號

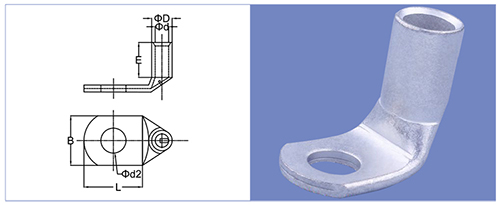

尺寸DIMENSIONS(mm)

Φd 2

B

L

ΦD

Φd

E

T10M6D90

T90°10-6

6.4

11.9

12.5

6.9

4.7

10.5

T10M8D90

T90°10-8

8.3

13.5

15.5

6.9

T16M6D90

T90°16-6

6.4

11.9

12

7.8

5.6

11

T16M8D90

T90°16-8

8.3

13.5

15.5

7.8

T25M8D90

T90°25-8

8.3

14

16

9.5

7.1

13

T25M10D90

T90°25-10

10.5

16

19

9.5

T35M8D90

T90°35-8

8.3

16.5

18

11

8.2

16

T35M10D90

T90°35-10

10.5

16.5

22

11

T50M10D90

T90°50-10

10.5

17.9

22

12.5

9.5

19

T50M12D90

T90°50-12

13

17.9

22

12.5

T70M10D90

T90°70-10

10.5

21.5

22

15

11.5

21

T70M12D90

T90°70-12

13

21.5

22

15

T95M14D90

T90°95-14

14.5

24.7

33

17

13.5

24

T95M16D90

T90°95-16

16.5

24.7

33

17

T120M14D90

T90°120-14

14.5

28.9

33

20

15.6

27

T120M16D90

T90°120-16

16.5

28.9

33

20

T150M14D90

T90°150-14

14.5

30.4

33

21

16.5

32

T150M16D90

T90°150-16

16.5

30.4

33

21

T185M16D90

T90°185-16

16.5

34

35

23.6

18.4

34

T240M16D90

T90°240-16

16.5

38.5

35

26.4

21.2

38
