PART NO. 規格/編碼 |
ITEM NO. 品名型號 |

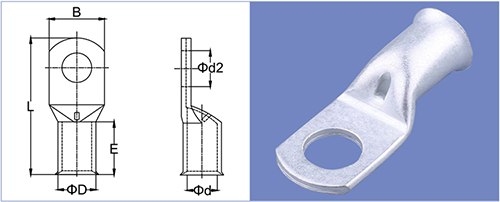

尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
FC10M5 |
FC10-5 |
5.3 |
12 |
30.5 |
6.8 |
4.3 |
12 |
|
FC10M6 |
FC10-6 |
6.5 |
12 |
30.5 |
|||
|
FC10M8 |
FC10-8 |
8.5 |
15 |
37 |
|||
|
FC10M10 |
FC10-10 |
10.5 |
16 |
41 |
|||
|
FC10M12 |
FC10-12 |
13 |
19 |
44 |
|||
|
FC16M5 |
FC16-5 |
5.3 |
12 |
33.3 |
8 |
5.3 |
14 |
|
FC16M6 |
FC16-6 |
6.5 |
12 |
33.3 |
|||
|
FC16M8 |
FC16-8 |
8.5 |
16 |
37.5 |
|||
|
FC16M10 |
FC16-10 |
10.5 |
16 |
41.5 |
|||
|
FC16M12 |
FC16-12 |
13 |
19 |
44 |
|||
|
FC25M5 |
FC25-5 |
5.3 |
13.5 |
36.3 |
9.5 |
6.6 |
15 |
|
FC25M6 |
FC25-6 |
6.5 |
13.5 |
36.3 |
|||
|
FC25M8 |
FC25-8 |
8.5 |
18 |
42 |
|||
|
FC25M10 |
FC25-10 |
10.5 |
18 |
46 |
|||
|
FC25M12 |
FC25-12 |
13 |
18 |
48 |
|||
|
FC25M14 |
FC25-14 |
15 |
20 |
52.5 |
|||
|
FC35M5 |
FC35-5 |
5.3 |
15 |
39.5 |
11 |
7.9 |
17 |
|
FC35M6 |
FC35-6 |
6.5 |
15 |
39.5 |
|||
|
FC35M8 |
FC35-8 |
8.5 |
17 |
44 |
|||
|
FC35M10 |
FC35-10 |
10.5 |
17 |
49 |
|||
|
FC35M12 |
FC35-12 |
13 |
19 |
51 |
|||
|
FC35M14 |
FC35-14 |
15 |
21 |
53.5 |
|||
|
FC50M6 |
FC50-6 |
6.5 |
18 |
42.5 |
12.5 |
9.2 |
19 |
|
FC50M8 |
FC50-8 |
8.5 |
18 |
47 |
|||
|
FC50M10 |
FC50-10 |
10.5 |
18 |
52 |
|||
|
FC50M12 |
FC50-12 |
13 |
19 |
54 |
|||
|
FC50M14 |
FC50-14 |
15 |
21 |
57.5 |
|||
|
FC50M16 |
FC50-16 |
17 |
26 |
61 |
|||
|
FC70M6 |
FC70-6 |
6.5 |
21 |
51 |
15 |
11 |
21 |
|
FC70M8 |
FC70-8 |
8.5 |
21 |
51 |
|||
|
FC70M10 |
FC70-10 |
10.5 |
21 |
55 |
|||
|
FC70M12 |
FC70-12 |
13 |
22 |
59 |
|||
|
FC70M14 |
FC70-14 |
15 |
23 |
62.5 |
|||
|
FC70M16 |
FC70-16 |
17 |
28 |
66 |
|||
|
PART NO. 規格/編碼 |
ITEM NO. 品名型號 |
尺寸DIMENSIONS(mm) |
|||||
|
Φd 2 |
B |
L |
ΦD |
Φd |
E |
||
|
FC70M20 |
FC70-20 |
21 |
30 |
72 |
15 |
11 |
21 |
|
FC95M8 |
FC95-8 |
8.5 |
25 |
56 |
17 |
13.1 |
25 |
|
FC95M10 |
FC95-10 |
10.5 |
25 |
60 |
|||
|
FC95M12 |
FC95-12 |
13 |
25 |
62 |
|||
|
FC95M14 |
FC95-14 |
15 |
25 |
66.5 |
|||
|
FC95M16 |
FC95-16 |
17 |
25 |
70 |
|||
|
FC95M20 |
FC95-20 |
21 |
30 |
76 |
|||
|
FC120M8 |
FC120-8 |
8.5 |
28 |
64 |
19 |
14.5 |
26 |
|
FC120M10 |
FC120-10 |
10.5 |
28 |
64 |
|||
|
FC120M12 |
FC120-12 |
13 |
28 |
66 |
|||
|
FC120M14 |
FC120-14 |
15 |
28 |
69.5 |
|||
|
FC120M16 |
FC120-16 |
17 |
28 |
72 |
|||
|
FC150M10 |
FC150-10 |
10.5 |
30 |
71 |
21 |
16.2 |
30 |
|
FC150M12 |
FC150-12 |
13 |
30 |
73 |
|||
|
FC150M14 |
FC150-14 |
15 |
30 |
73 |
|||
|
FC150M16 |
FC150-16 |
17 |
30 |
75 |
|||
|
FC185M12 |
FC185-12 |
13 |
33.5 |
81 |
23 |
18 |
32 |
|
FC185M14 |
FC185-14 |
15 |
33.5 |
85 |
|||
|
FC185M16 |
FC185-16 |
17 |
33.5 |
87 |
|||
|
FC185M20 |
FC185-20 |
21 |
33.5 |
91 |
|||
|
FC240M10 |
FC240-10 |
10.5 |
38 |
93.5 |
26 |
20.6 |
35 |
|
FC240M12 |
FC240-12 |
13 |
38 |
93.5 |
|||
|
FC240M14 |
FC240-14 |
15 |
38 |
93.5 |
|||
|
FC240M16 |
FC240-16 |
17 |
38 |
93.5 |
|||
|
FC240M20 |
FC240-20 |
21 |
38 |
93.5 |
|||
|
FC300M12 |
FC300-12 |
13 |
41 |
96 |
28 |
23 |
44 |
|
FC300M14 |
FC300-14 |
15 |
41 |
102 |
|||
|
FC300M16 |
FC300-16 |
17 |
41 |
102 |
|||
|
FC300M20 |
FC300-20 |
21 |
41 |
106 |
|||
|
FC400M12 |
FC400-12 |
13 |
46.5 |
115 |
32 |
26 |
44 |
|
FC400M14 |
FC400-14 |
15 |
46.5 |
115 |
|||
|
FC400M16 |
FC400-16 |
17 |
46.5 |
115 |
|||
|
FC400M20 |
FC400-20 |
21 |
46.5 |
118 |
|||
|
|
|||||||
