PART NO.

規(guī)格/編碼

ITEM NO.

品名型號

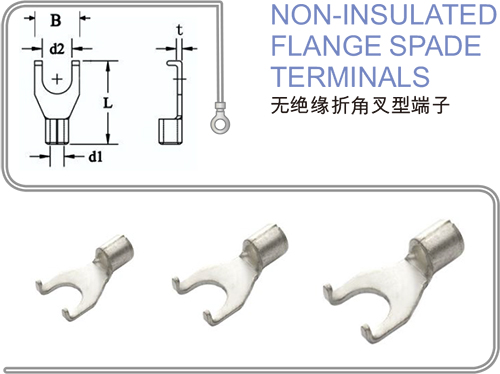

尺寸DIMENSIONS(mm)

STUD SIZE

WIRE RANGE

電線范圍

A .W.G.mm2

d 1

d 2

B

L

t

FS1.25M3B

FS1.25-3B

1.90

3.2

5.7

14.6

0.75

#4

22-16 A.W.G.

0.5-1.5 mm2

FS1.25M3.5B

FS1.25-3.5B

3.7

6.2

#6

FS1.25M3.5SB

FS1.25-3.5SB

3.7

5.7

#6

FS1.25M4B

FS1.25-4B

4.3

7.2

#8

FS1.25M4SB

FS1.25-4SB

4.3

6.4

#8

FS1.25M5B

FS1.25-5B

5.3

8.0

#10

FS1.25M6B

FS1.25-6B

6.4

10.7

15.6

1/4

FS1.25M8B

FS1.25-8B

8.4

13.5

20.7

5/16

FS2M3B

FS2-3B

2.50

3.2

5.7

14.9

0.80

#4

16-14 A.W.G.

1.5-2.5 mm2

FS2M3.5B

FS2-3.5B

3.7

6.2

#6

FS2M3.5SB

FS2-3.5SB

3.7

5.7

#6

FS2M4B

FS2-4B

4.3

7.2

#8

FS2M4SB

FS2-4SB

4.3

6.4

#8

FS2M5B

FS2-5B

5.3

8.0

#10

FS2M6B

FS2-6B

6.4

10.7

15.9

1/4

FS2M8B

FS2-8B

8.4

13.5

21.0

5/16

FS5.5M3B

FS5.5-3B

3.60

3.2

7.3

18.3

1.00

#4

12-10 A.W.G.

4-6 mm2

FS5.5M3.5B

FS5.5-3.5B

3.7

8.1

#6

FS5.5M4B

FS5.5-4B

4.3

8.2

#8

FS5.5M4SB

FS5.5-4SB

4.2

6.3

#8

FS5.5M5B

FS5.5-5B

5.3

9.0

#10

FS5.5M6B

FS5.5-6B

6.4

12.0

22.1

1/4

FS5.5M8B

FS5.5-8B

8.4

13.5

23.8

5/16
